RF Power Rating

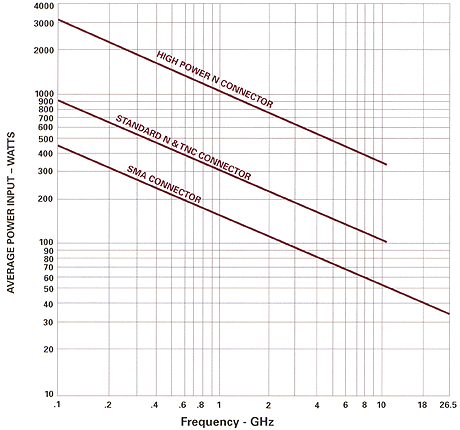

Note: This graph is intended to provide an estimate of the CW power handling
capacity of DBP Microwave's switches. In the absence of actual test data, DBP Microwave
recommends leaving a 3dB margin between the CW power obtained from the graph and
the actual CW power. Please consult the factory before specifying our products in
applications with less than the recommended 3dB margin.
|
VSWR
|
Derating Factor
|
VSWR
|
Derating Factor
|
|
1.5:1
|
0.96
|
3.5:1
|
0.70
|
|
2.0:1
|
0.88
|
4.0:1
|
0.64
|
|
2.5:1
|
0.84
|
4.5:1
|
0.60
|
|
3.0:1
|
0.75
|
5.0:1
|
0.56
|
Consult Factory for derating factor when application does not
meet the foregoing referenced conditions.
|
|
